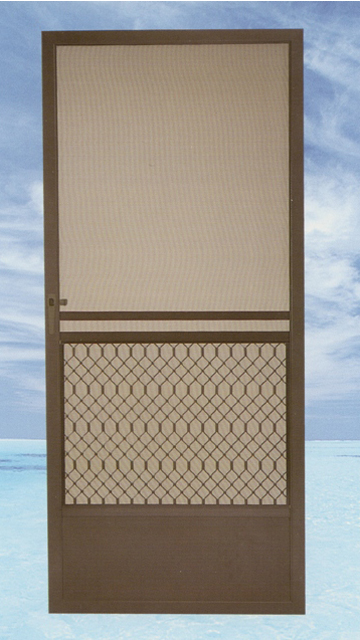

The Monterey: Model A270

The Monterey

Quality Features

  • Contemporary inside and outside door latches
  • Inside lock, fail safe . . . can't accidentally lock owner out
  • Quiet air coor closer, guaranteed for ten years
  • Adjustable side and bottom channels for proper fit
  • Three oilite bering hinges riveted to frame
Graceful yet sturdy, the Monterey is an all-time favorite. Its all-aluminum construction, including the heavy-duty extruded aluminum frame and Amplimesh® grill, make the Monterey a popular design.

Finish Options:

Bronze Enamel, White Enamel

Built to Last

  • Extra-heavy-duty 21/8" x 3/4" extruded aluminum frame with rigid LOK-tite™ corners
  • Two 11/4" extruded aluminum pushbars
  • Heavy patterned kickplate integral with main frame and extruded aluminum meeting rail
  • Heavy-duty expanded aluminum grill locked directly to main frame
  • Highest quality pushbutton lock, pneumatic closer, oilite bearing hinges
  • Installation instructions included
  • Charcoal 18" x 16" x 0.011 mesh fiberglass screening

Sizes:

3-0x6-8

Special Doors

Viewgaurd

Adjustable Sizes:

Size Width
Tolerance
Height
Tolerance
3-0 x 6-8 355/8" to 365/8" 793/4" to 811/2"
2-8 x 6-8 315/8" to 325/8" 793/4" to 811/2"
2-6 x 6-8 295/8" to 305/8" 793/4" to 811/2"

French Doors

Available in Aspen, Colonial, Full View, Marina, Monterey, and Riviera models only.
